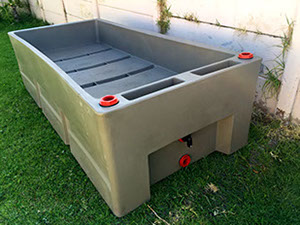

Step 1. Unpack empty Elevated Garden

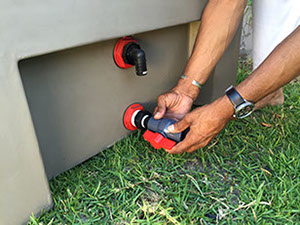

Step 2. Screw in drain tap

EASY TO SET UP

Elevated Gardens can easily be self-installed as the majority of the components are put together in the factory and tested prior to being sent out.



Elevated Gardens are supplied with an installation manual, including photographic setups of the components and for turning on the system. The system comes already programmed with the correct daily watering times.











Town or rain water should be used for the system. Grey water should not be used as it may contain contaminates.



If you are going to use bore water we suggest you have it tested first for salt levels. Please contact us if you think this test will be necessary and we will advise you on how to proceed.



Facing the solar panel is critical for optimal charging of the battery cell.





If the garden receives sun all day, face the solar panel north in the southern hemisphere.



If sun is only received half the day, face the panel into the predominate direction of the sunlight.



The only tools required is a hose for the water to fill the system and a 1 litre measuring jug for adding nutrients.

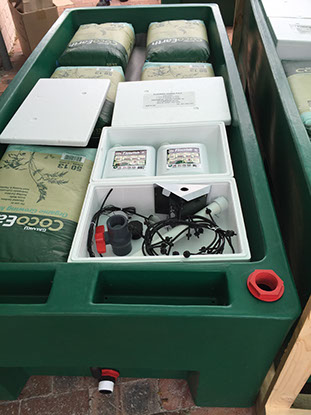

delivered as a plug & play kit

Everything you need in 'plug and play' kit form including the CocoEarth and plant food. We export to any country.

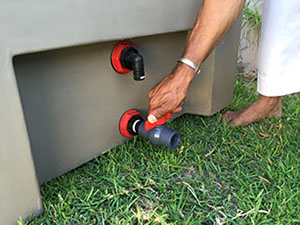

Step 3. Make sure drain tap is closed

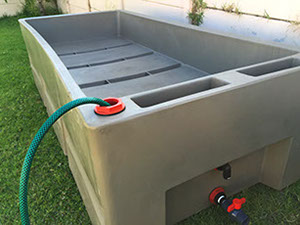

Step 4. Fill Tank with Water

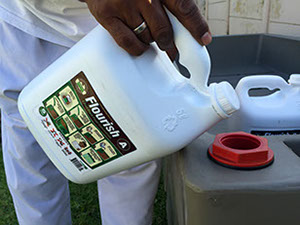

Step 5. Pour in Flourish A

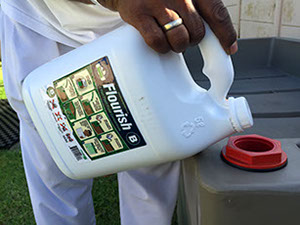

Step 6. Pour in Flourish B

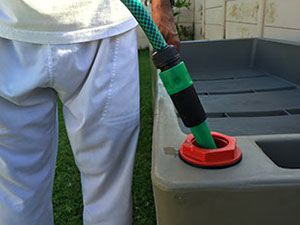

Step 7. Continue to Fill with Water

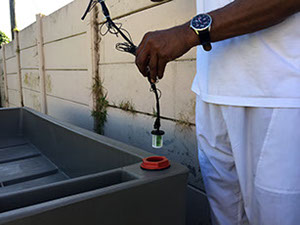

Step 8. Place Water pump into Tank

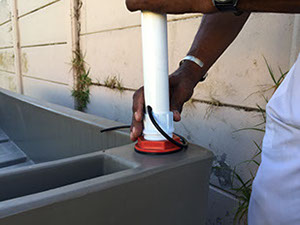

Step 9. Screw in Solar Panel Controller

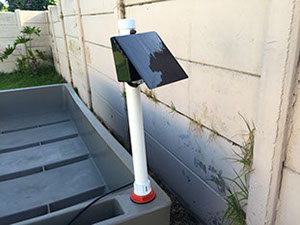

Step 10. Face solar panel north towards the sun.

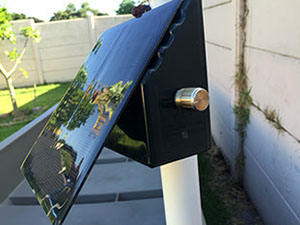

Step 11. Switch controller to #5 setting

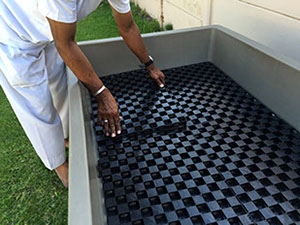

Step 12. Place Drain Cells in tank

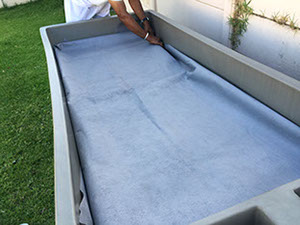

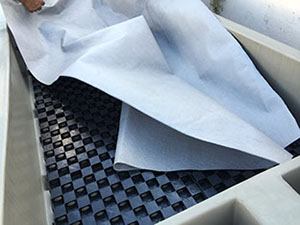

Step 13. Wrap Geotextile Cloth around Drain Cell

Step 14. Secure Geotextile around Drain Cell

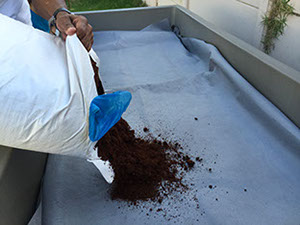

Step 15. Pour CocoEarth into tank

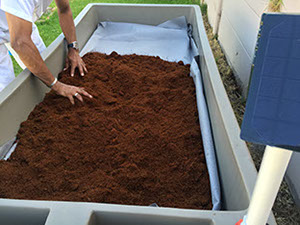

Step 16. Spread CocoEarth evenly

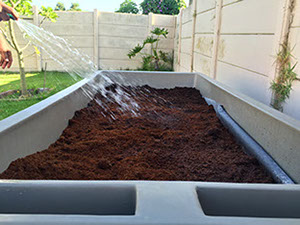

Step 17. Wet-up the CocoEarth

Step 18. Prepare CocoEarth for Seedlings

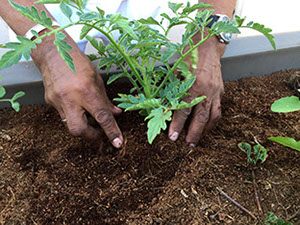

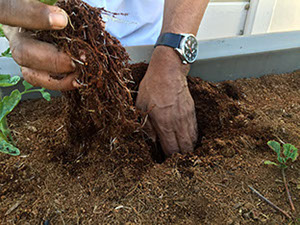

Step 19. Plant your seedlings

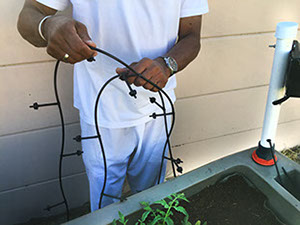

Step 20. Connect Irrigation Line

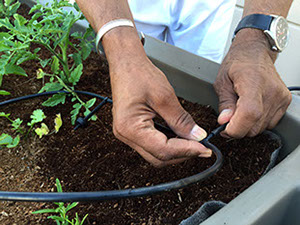

Step 21. Connect Irrigation line to Controller

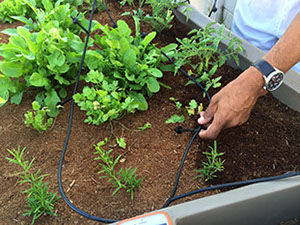

Step 22. Place Irrigation Line across the bed

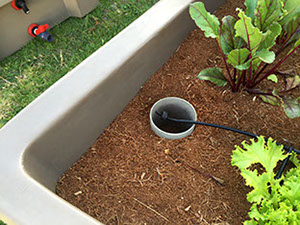

Step 23. Place end of Irrigation line into the drain cup
